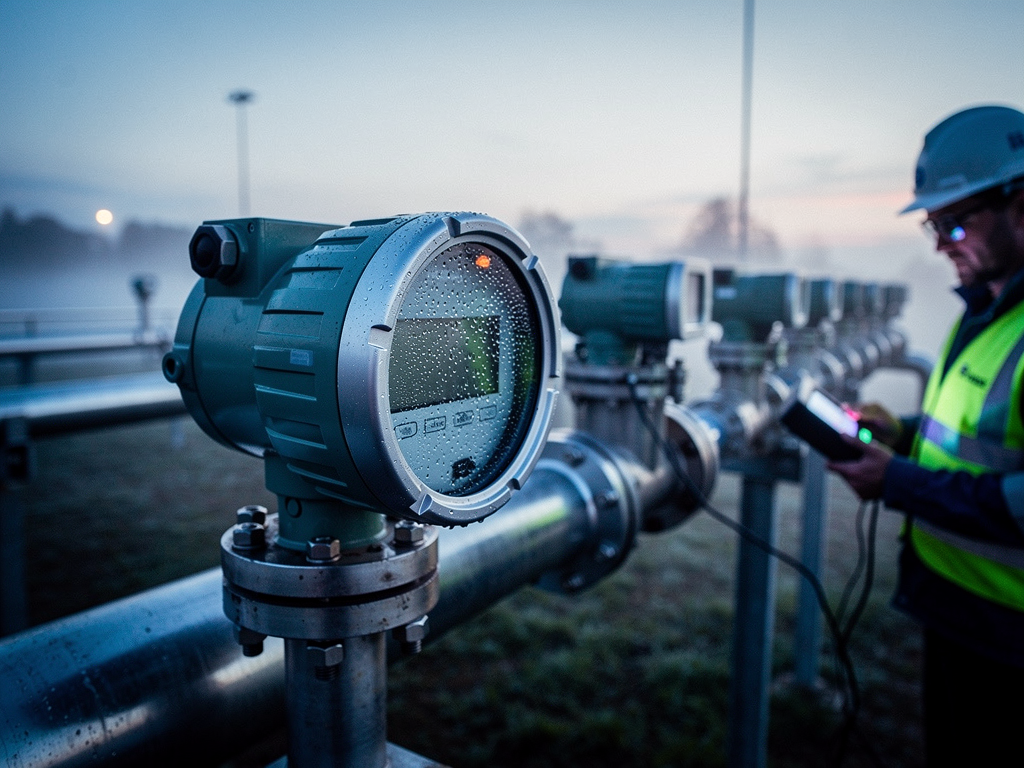

A flow meter that reads 1.8 percent high does not seem like a significant problem. In a zone processing 500,000 litres per day, that 1.8 percent error adds up to 9,000 litres of phantom unaccounted water every day - enough to generate persistent false alarms and mask real losses of similar magnitude. The instrumentation engineer sees a meter that passed its last annual calibration within the manufacturer’s accuracy specification. The operations manager sees a zone with inexplicably high unaccounted-for water that never responds to leak detection sweeps. Neither is wrong, and neither can resolve the discrepancy without understanding how measurement error accumulates in a continuous monitoring system.
Sensor Drift Mechanisms Produce Distinct Error Signatures in Flow Data
Electromagnetic flow meters in water networks drift through three primary mechanisms, each leaving a different fingerprint in the time-series data. Electrode fouling from mineral scaling or biofilm growth reduces the signal strength progressively, causing the meter to under-read at low flows while maintaining near-accurate readings at high velocities. A meter on a raw water line handling hard groundwater at a municipal treatment plant will show this pattern: the night minimum flow reading drops by 0.5 percent per month while the daytime peak reading shifts only 0.1 percent over the same period. The operator sees a slow decline in night flows and might interpret it as a successful pressure management intervention.
Electrode degradation from galvanic corrosion produces a different signature: the error appears as a constant offset across all flow rates, not a proportional one. A meter with a corroded electrode in a zone inlet may read 2.1 percent high at 10 litres per second and 2.1 percent high at 100 litres per second. This uniform offset is the most dangerous form of drift because it does not distort the diurnal flow pattern - the shape of the daily curve remains correct, so no operator would visually flag the data as suspicious. The third mechanism, temperature-induced calibration shift, occurs when the meter’s factory calibration was performed at a standard temperature and the actual water temperature differs significantly. In Indian summer conditions, water in exposed distribution mains can reach 38 degrees Celsius, shifting the magnetic field strength and producing a non-linear error that varies with both flow rate and time of day.
Flow Balance Time Series Reveals the Difference Between Drift and a Genuine Small Leak
A zone with a real small leak of 0.5 litres per second shows a specific signature in the night flow minimum: the flow drops to a stable plateau during the hours of minimum consumption, and that plateau remains constant from night to night until the leak is repaired. The plateau may fluctuate slightly with pressure variations, but it does not trend upward or downward over weeks. Sensor drift, by contrast, produces a trending baseline. A meter that is fouling will show a night minimum that decreases by a small percentage each week, while a meter with electrode corrosion will show a night minimum that is elevated by a fixed percentage but remains stable from night to night.
The critical operational distinction is that drift from electrode fouling can perfectly mimic a leak reduction intervention - the operator sees night flows dropping and assumes the pressure reduction or leak repair program is working, when in fact the meter is simply losing sensitivity. This misattribution has real consequences: a utility in a major Indian city spent eight months optimizing a DMA that appeared to have improving night flow performance, only to discover during a scheduled meter replacement that the old meter had been under-reading by 4.7 percent. The actual night flow had never changed. The monthly UFW reports had been showing improvement that did not exist, and the leak detection team had been diverted away from zones with genuine losses.
Pressure Transducer Zero-Point Drift Is Routinely Misattributed to Network Changes
Pressure transducers in water networks drift differently from flow meters. The zero-point offset - the reading when the pipe is depressurised - shifts over time due to diaphragm fatigue, temperature cycling, or moisture ingress into the electronics housing. A transducer that reads 0.15 bar when the line is empty will add that offset to every subsequent reading. In a distribution zone operating at 3.5 bar, a 0.15 bar offset represents a 4.3 percent error, which is within the typical accuracy class of many installed transducers and therefore invisible to routine calibration checks that only verify span accuracy.
The operational consequence is that pressure trends become unreliable for hydraulic model calibration. A utility engineer comparing current pressure readings against a model built five years ago might conclude that the network has lost head due to increased friction or valve throttling, when in reality the transducer has drifted. The corrective action - cleaning valves, replacing pipe sections, or adjusting pump speeds - addresses a problem that does not exist. Meanwhile, a genuine pressure drop from a partially closed valve remains hidden because the drifted transducer masks the change. The only way to detect zero-point drift is to compare readings from adjacent transducers on the same main, or to install a manual pressure gauge at the same tapping point during maintenance visits and log the difference.
Cross-Validation Between Adjacent Sensors Detects Drift Faster Than Scheduled Calibration
Scheduled calibration every twelve months is the industry standard, but it leaves eleven months of undetected drift in the data stream. A meter that begins to drift in month two will produce corrupted data for ten months before the calibration technician arrives. Cross-validation between adjacent sensors - comparing the sum of two zone inlet meters against a bulk supply meter downstream, or comparing pressure readings from two transducers on the same pipe section - can detect drift within days or weeks of its onset.
The practical implementation requires careful sensor placement. Two flow meters on parallel mains feeding the same DMA should read within 2 percent of each other when summed and compared to the zone’s bulk meter. If the difference exceeds 3 percent for three consecutive days, one of the meters is drifting. The challenge is that utilities rarely install redundant metering for this purpose. The more common approach is to compare the night flow reading of a zone inlet meter against the sum of customer meters in that zone, but customer meters have their own drift characteristics and introduce additional uncertainty. A better cross-validation strategy uses the mass balance across a treatment plant - the sum of all distribution zone inlet meters should match the plant outflow meter within a known tolerance that accounts for treatment plant consumption and clearwell level changes.
Statistical Properties of the Data Stream Flag Probable Drift Without Reference Sensors
Modern monitoring platforms can detect drift using statistical analysis of the data stream alone, without requiring a reference sensor. The key insight is that drift changes the statistical distribution of the measurements over time. A healthy flow meter in a residential DMA produces a diurnal pattern with a characteristic coefficient of variation - the ratio of the standard deviation to the mean - that remains stable across weeks. When drift begins, the mean shifts while the standard deviation remains relatively constant, altering the coefficient of variation in a way that is detectable by simple rolling statistics.
A more sensitive method tracks the correlation between flow and pressure at the zone inlet. In a properly functioning network, flow and pressure at the inlet follow a predictable relationship: when flow increases due to demand, pressure drops due to friction losses. If the flow meter begins to drift upward, the correlation coefficient between flow and pressure changes because the flow readings no longer reflect actual demand. An operator monitoring this correlation can identify a drifting flow meter within two to three days, compared to months with scheduled calibration. The same technique works for pressure transducers: if the pressure reading at a zone inlet no longer correlates with the pressure at a downstream point during periods of zero demand, the transducer has likely developed a zero-point offset.
Calibration Frequency Must Match the Drift Rate of Each Sensor Type in the Network
One calibration interval does not fit all sensor types in a water utility. Electromagnetic flow meters on raw water lines handling abrasive or scaling water require calibration every six months, while meters on treated water lines in stable temperature conditions can maintain accuracy for two years. Pressure transducers in buried valve chambers with high humidity and temperature swings drift faster than transducers in climate-controlled pump stations. The calibration schedule should be determined by the observed drift rate of each sensor population, not by a calendar date set during installation.
A practical approach is to calibrate a representative sample of each sensor type at three-month intervals for the first year of operation, plot the drift rate, and then set the calibration interval to half the time it takes for the worst-performing sensor in the sample to exceed the acceptable error threshold. For a utility with 200 electromagnetic flow meters, this means calibrating 50 meters per quarter for the first year, then adjusting the interval based on the data. The cost of this accelerated calibration program is offset by the value of the data quality it preserves - a single undetected drift event that masks a 50,000 litre per day leak for six months costs more in lost water than the entire calibration program for that zone.
The monitoring platform itself becomes the calibration management tool when it can track the time since last calibration, the observed drift rate from cross-validation, and the statistical indicators of probable drift. A dashboard that flags meters approaching their calibration due date and meters showing statistical drift indicators allows the instrumentation team to prioritize field visits by risk, not by schedule. The operator who sees a zone with stable night flows but a rising correlation drift indicator knows to schedule a meter inspection before the data becomes unreliable, rather than waiting for the annual calibration cycle to reveal the problem six months too late.
